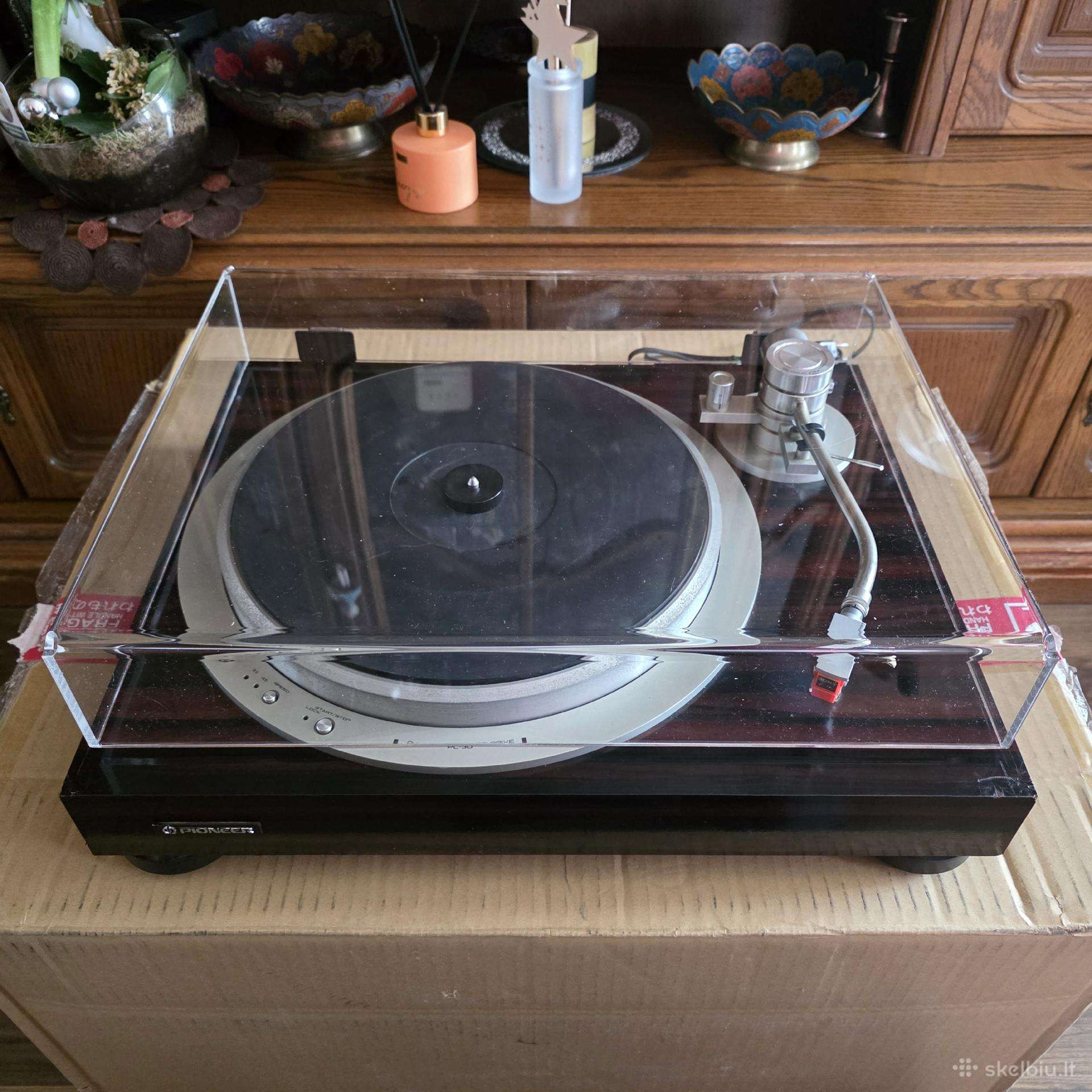

PIONEER PL-30 Tvarkingas.Galiu saugiai siusti arba atsiimti Telsiuose.
Type Cartridgeless player system
Phono Motor Section
Motor Quartz PLL DC servo Hall motor
Drive system Direct drive
Bearing structure SH / rotor system
Turntable Diameter 31cm
Turntable inertia mass 330kg-cm2(including turntable seats)
Number of revolutions 33 1/3, 45 rpm
Rotational speed change Electronic with short stroke switch
Uneven rotation 0.012% or Less (PL-30L, WRMS/FG Direct Reading Method)
0.013% or Less (PL-30, WRMS/FG Direct Reading Method)
0.023% or Less (WRMS/JIS)
S/N 78 dB or more (DIN-B)
63 dB or More (JIS)
Load variation 0% (Needle Pressure 200g or Less)
Start-up characteristic 1/3 turn or less
Starting torque 1.3kg-cm
Speed detection method All-round integration method FG
Rotational speed deviation Not more than 0.002%
Drift Time drift : 0.00008% / h
Temperature drift : 0.00003% / C.
Brake mechanism Pure electronic
Tone Arm Section
Type Oil braking system static balance S-shaped pipe arm
Effective length 250mm
Overhang 14mm
Tracking error + 2.1 , -1.2
Needle pressure adjustment Weight 1 Rotation 1g (0.1g scale)
Applicable Cartridge Dead Weight 4g ~ 13g (when using the attached shell)
Height adjustment range + / - 3 mm
Head shell Aluminum Impact Press Head Shell, Dead Weight 10.5g
<General>
Attachment mechanism Quartz lock indicator
Quick stop
Silent Lift Up (Electronic, PL-30L Only)
Semiconductors used Quartz : 1
IC:6
Hall element : 4 (3 for PL-50)
LED : 4 (3 for PL-50)
Transistor : 4
Diode : 4
Pwer 230 VAC, 50Hz/60Hz
Power consumption PL-30:8W
PL-30L:12W
External dimensions Width 490x Height 180x Depth 401 mm
Weight 11.5kg
