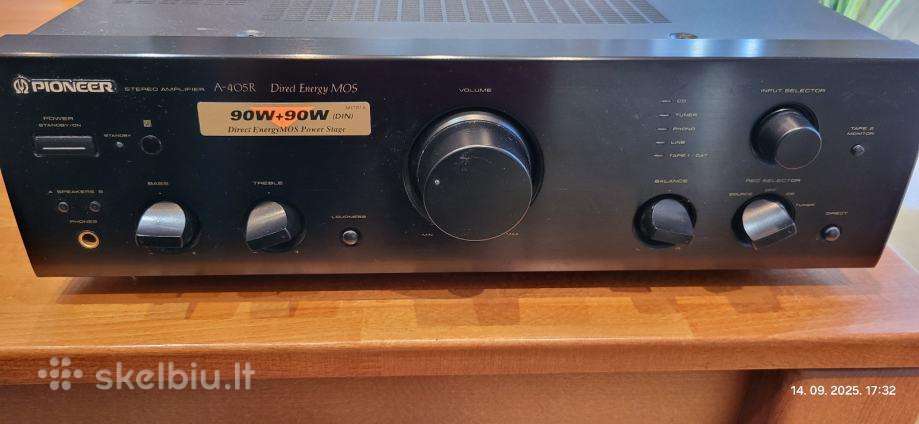

PIONEER A-405R

Manufacturer: Pioneer
Model: A-405 R
Type: Integrated amplifier
Years of manufacture: 1996 - 1998
Made in: Japan
Color: Black
Remote control: yes
Power consumption: 380 W
Dimensions: 420 x 125 x 344 mm (WxHxD)
Weight: 6.5 kg
Original price approx.: 500 DM

Connections

Number of inputs: 6 Cinch
PHONO (MM): 2,8 mV/ 50 kOhm

TUNER, CD, LINE, TAPE 1/DAT, TAPE 2/MONITOR: 200 mV/50 kOhm
Number of outputs: 2 Cinch
TAPE 1/DAT, TAPE 2/MONITOR: 200 mV/1 kOhm

Technical Data

Continuous power (at distortion factor)
8 Ohm: 2 x 45 Watt (0,06 %)
4 Ohm: 2 x 65 Watt (0,09 %)
Dynamic power:
4 Ohm: 100 Watt
Total harmonic distortion: 0.05 % (20- 20,000 Hz, 20 watts, 8 ohms)

Damping factor: ?
Frequency response:
PHONO (MM): 20- 20,000 Hz, +/- 0.5 dB
TUNER, CD, LINE, TAPE 1/DAT, TAPE 2/MONITOR: 5- 150,000 Hz, +0/ -3 dB
Signal-to-noise ratio:

PHONO (MM, 5 mV input): 86 dB
PHONO (MM): 71/67 dB according to DIN (continuous power/50 mW)

TUNER, CD, LINE, TAPE 1/DAT, TAPE 2/MONITOR: 106 dB
TUNER, CD, LINE, TAPE 1/DAT, TAPE 2/MONITOR: 95/ 71 dB according to DIN (continuous power/ 50 mW)
Stereo channel separation: ?
Tone control: analog
Bass: +/- 8dB (100 Hz) Treble: +/- 8dB (10 kHz)

Loudness: Yes, button
High Filter: No
Low Filter (Subsonic): No
Mute: No
Direct/Line-Straight: Yes


More data at "Hifi Engine": [1]

Special Features

Rec Selector (simultaneous listening to one source and recording another).
SR Bus output for controlling other Pioneer hi-fi components via the amplifier's remote control
Metal front panel
Power switch on the rear panel
1x Euro socket (max. 100 W)
2 pairs of speakers connectable, separately or simultaneously (A / B / A+B)
Gold-plated headphone jack
Balance control
