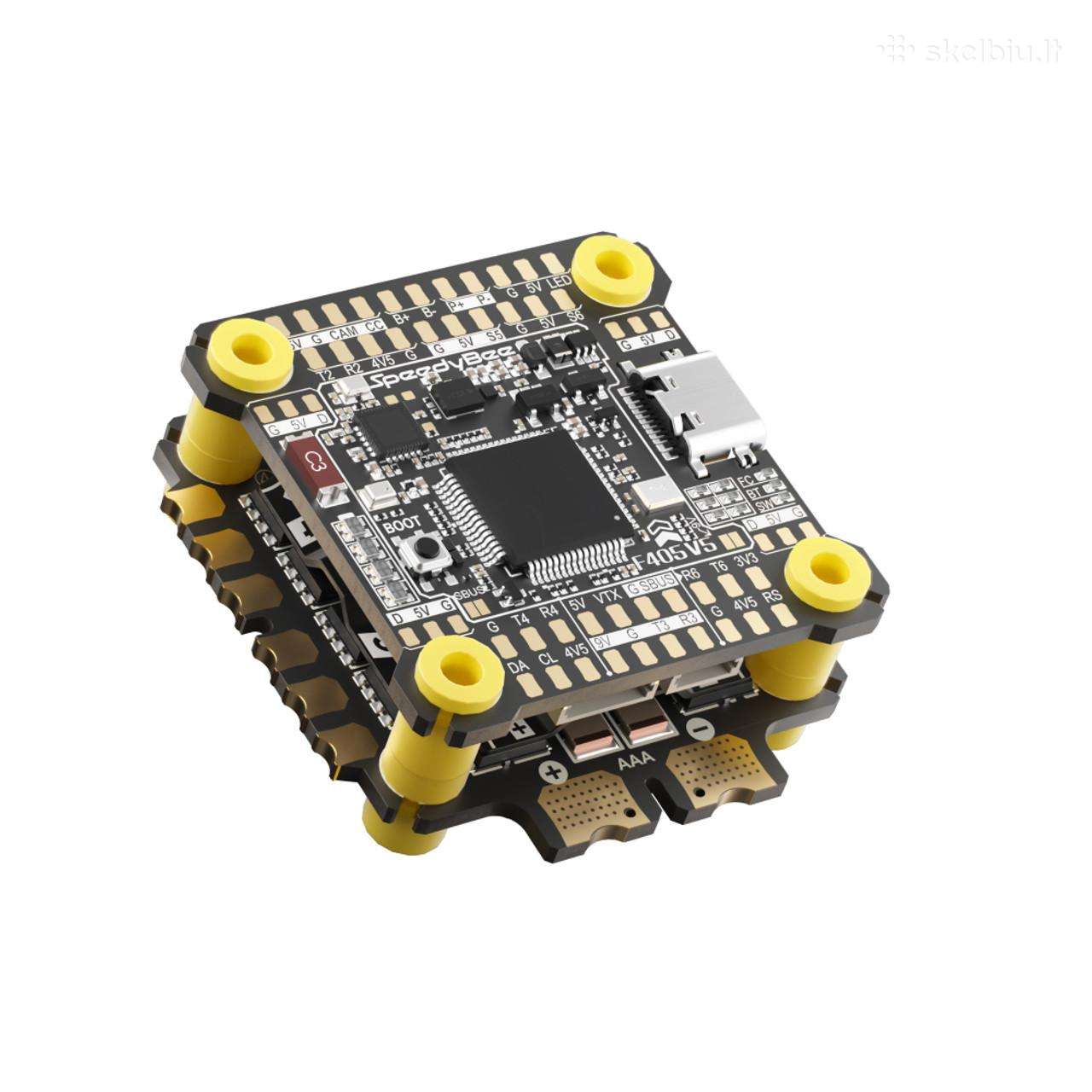

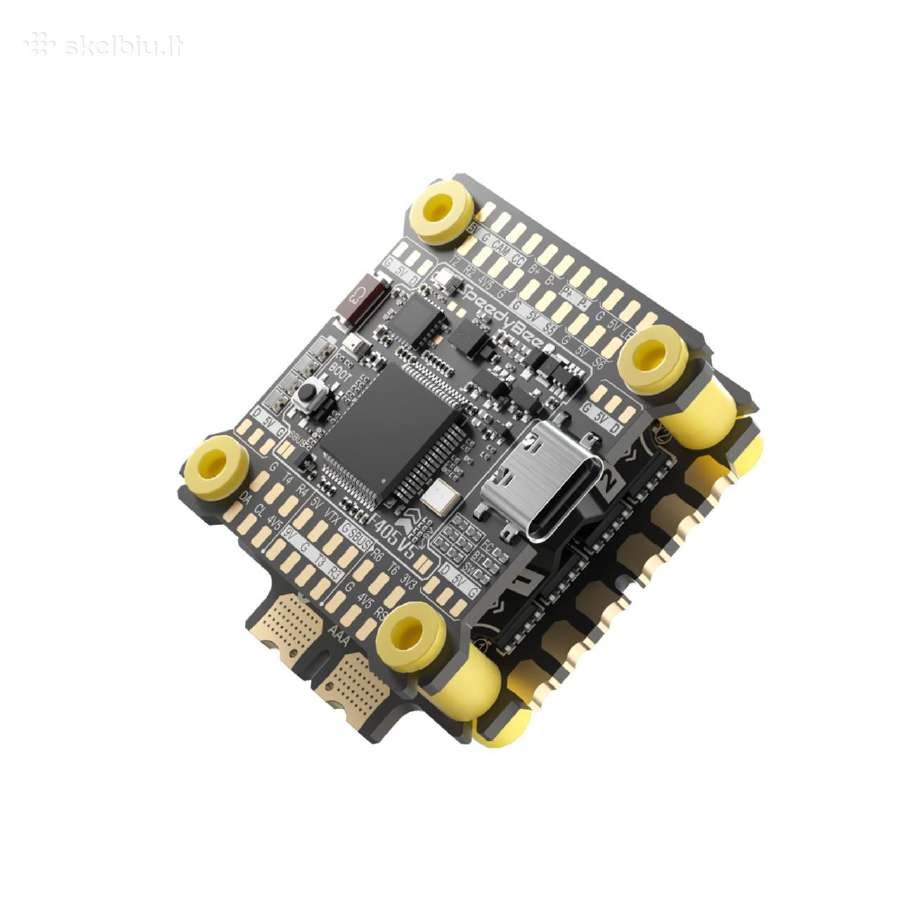

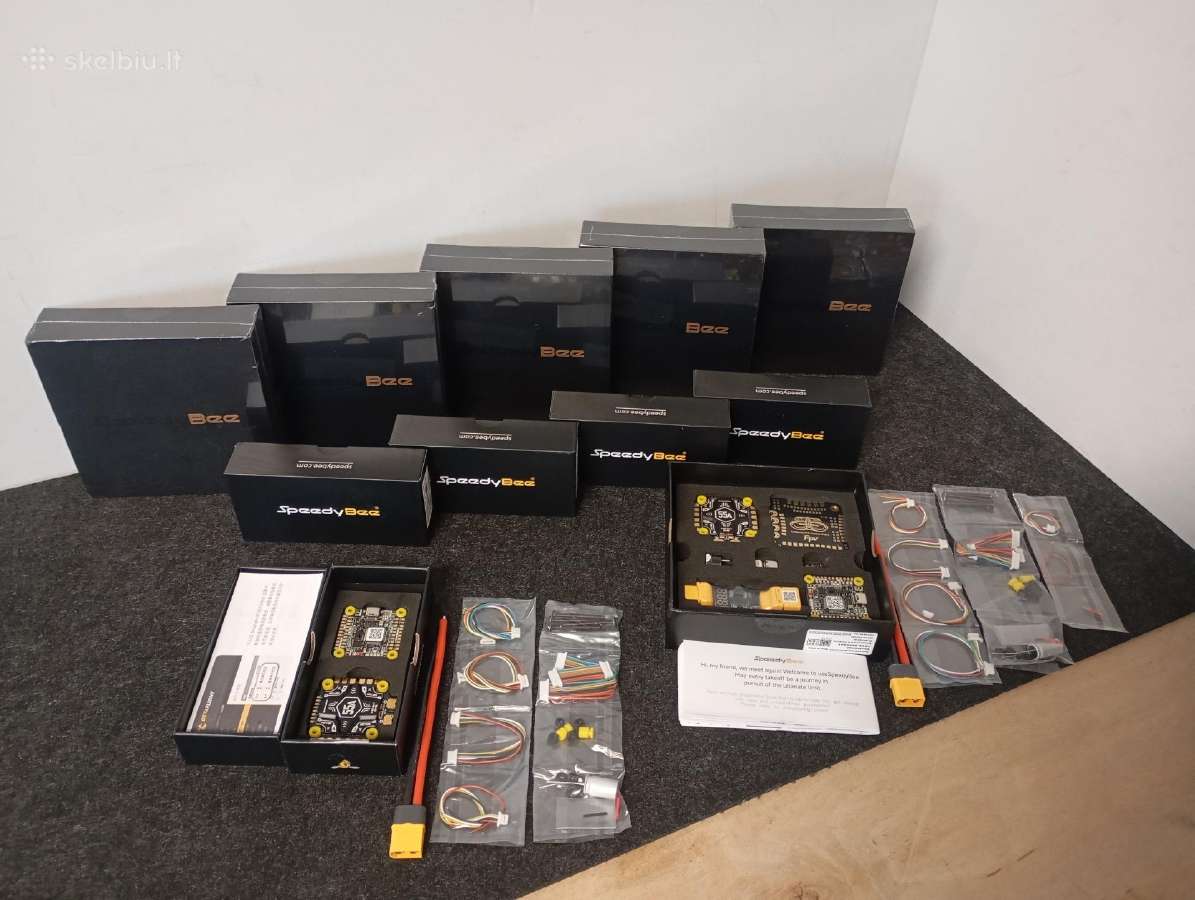

Nauji fpv dronų esc ir fc komplektai. 30*30mm (30.5x30.5mm) SpeedyBee F405 V5 OX32 55A FC&ESC Stack

SpeedyBee 55A F405 V5 Stack Standard - 90eur
SpeedyBee 55A F405 V5 Stack Deluxe - 100eur

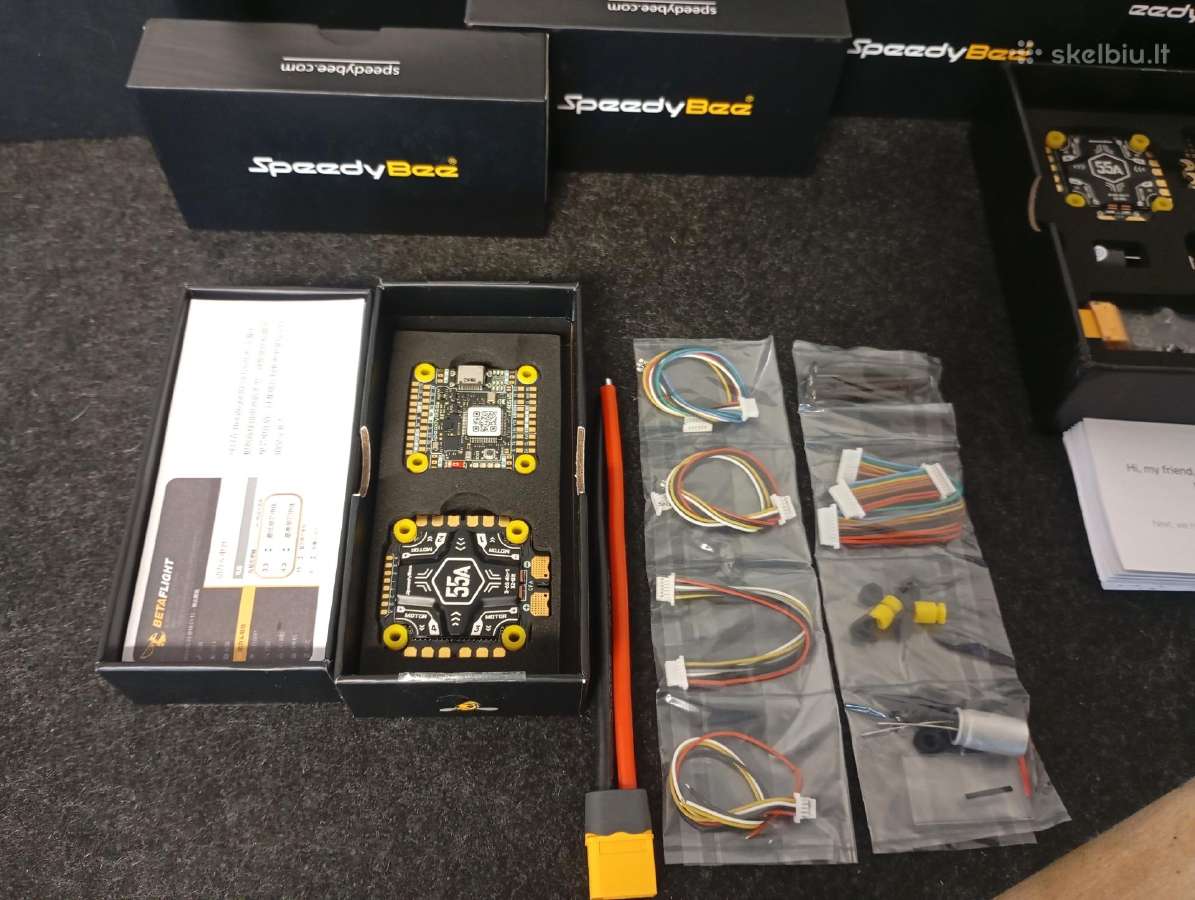

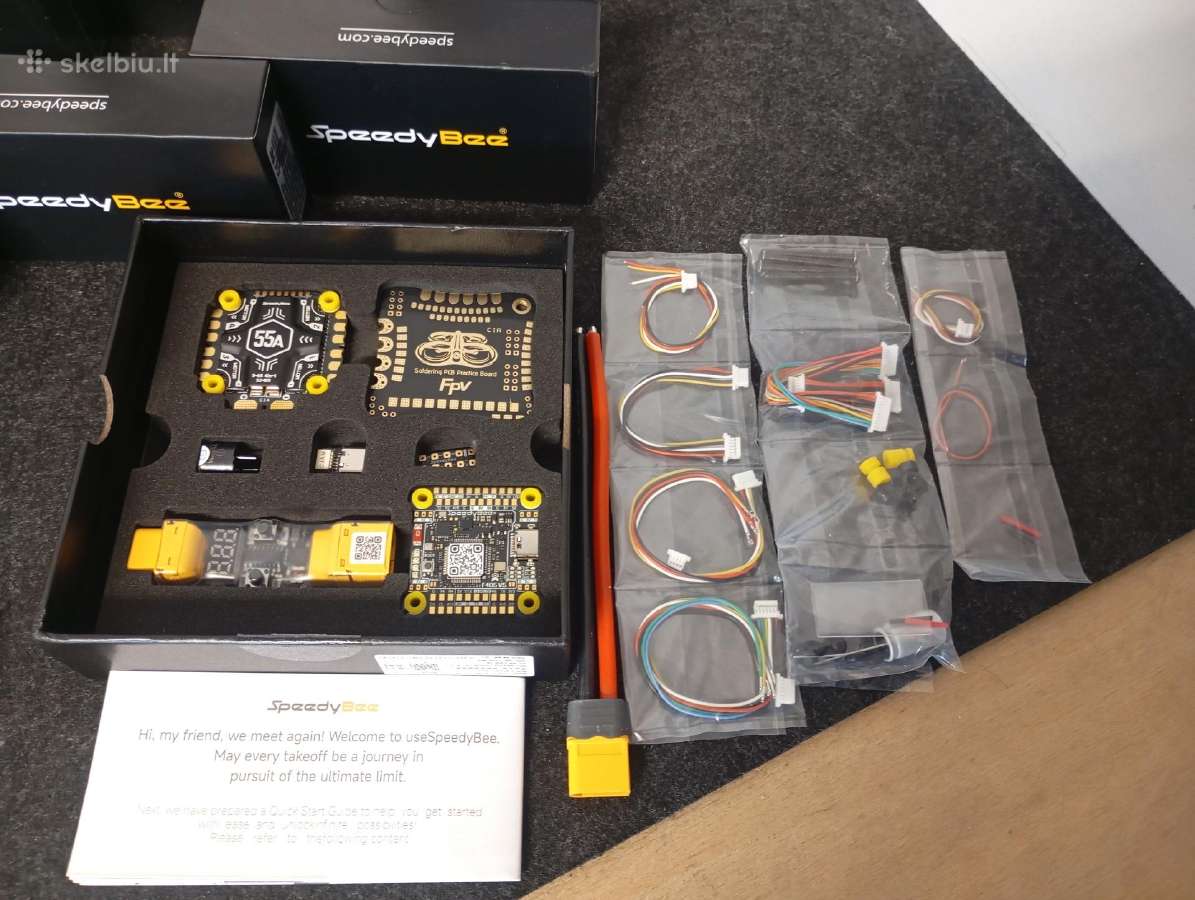

Deluxe versija papildomai turi šiuos priedus (detaliau nuotraukose):
-Short-Circuit Protection Tool„Smoke stopper“
-Soldering Practice Board
-Active Buzzer
-Type-C Extension Module
-Power Expansion Board

Apžiūrėti ir įsigyti galite Kaune, į kitus miestus siunčiu Jums patogiu būdu.
Daugiau dronų ir jų detalių rasite paspaudę "Visi pardavėjo skelbimai" arba užsukę į mano puslapį:
https://www.skelbiu.lt/pasiulymai/fpvdronai/

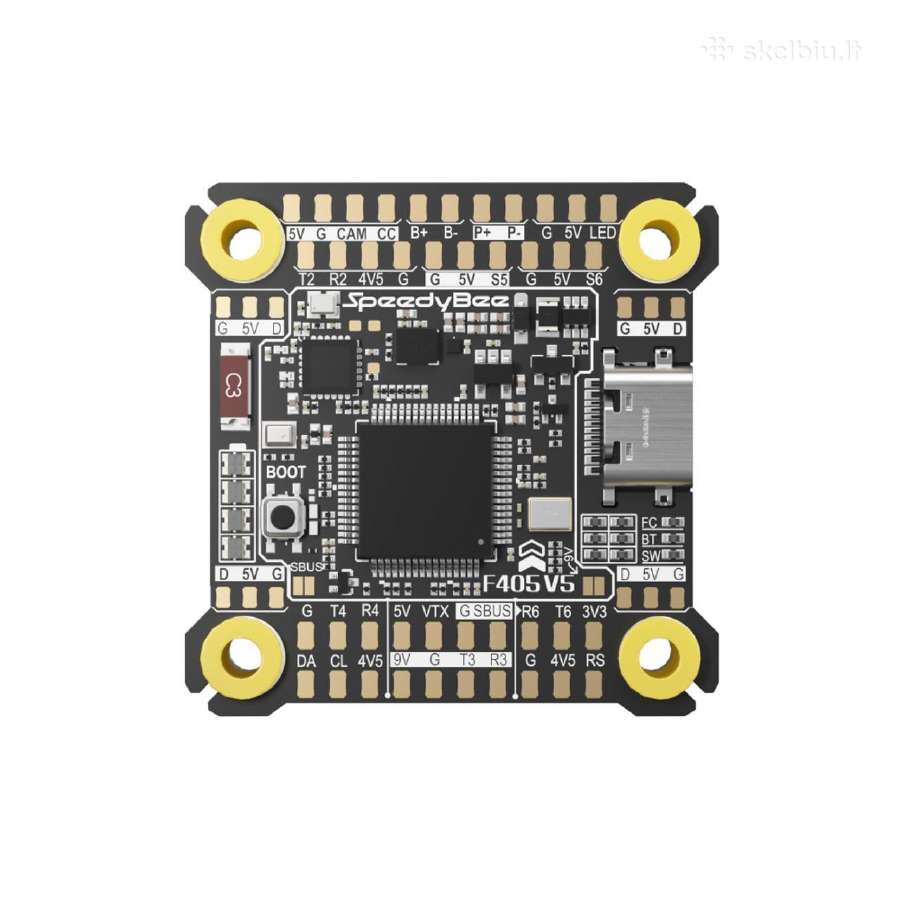

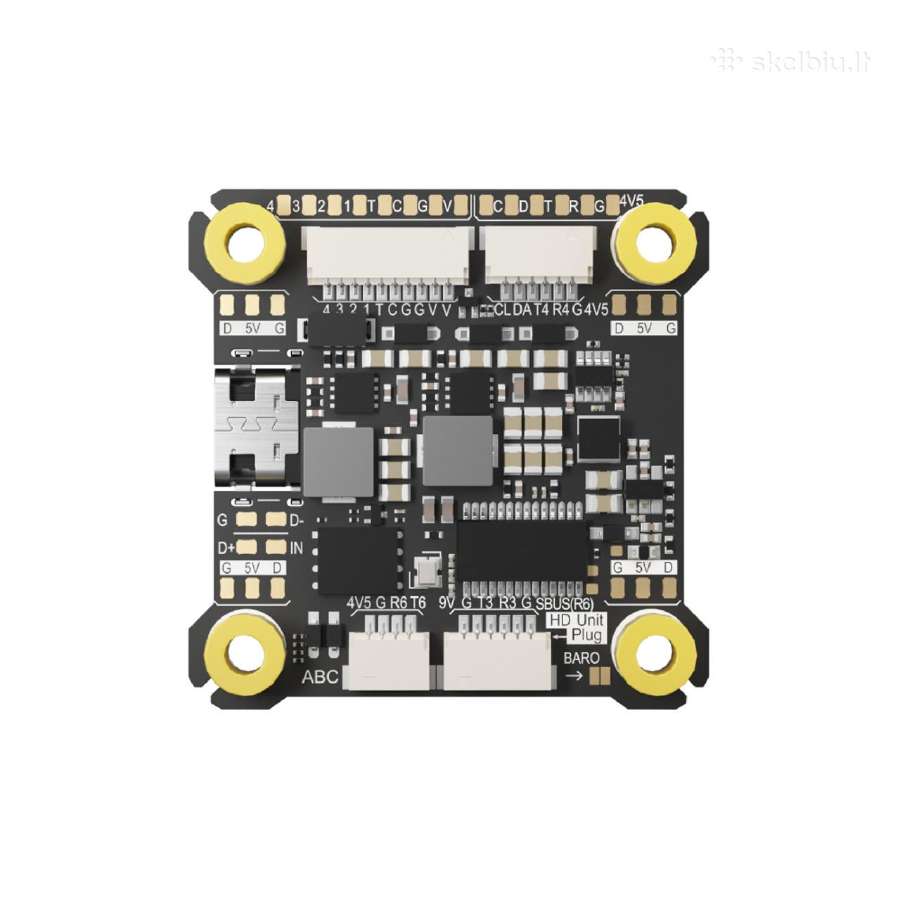

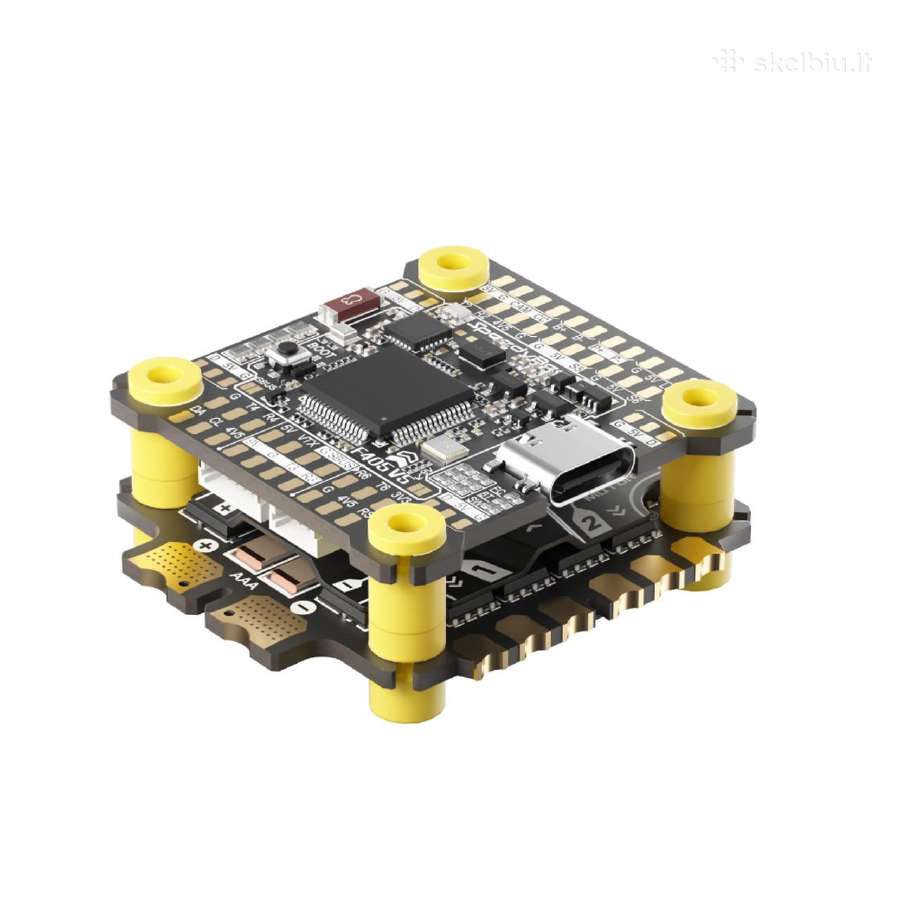

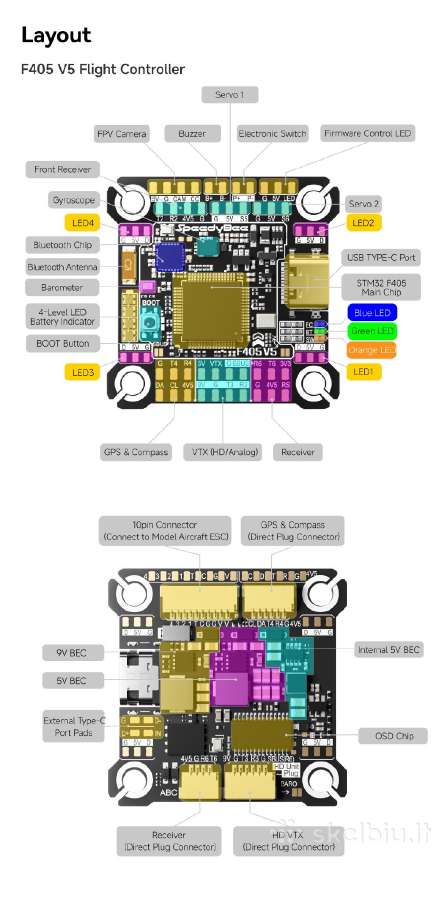

Flight Controller: SpeedyBee F405 V5 30.530.5mm

Product Name: SpeedyBee F405 V5 30.530.5mm Model Aircraft Flight Controller

MCU: STM32F405

IMU (Gyro): ICM42688P

USB Port Type: New Type-C interface

Barometer: SPA06-003

OSD Chip: AT7456E

Full-featured Bluetooth Tuning: Supported. Connect via SpeedyBee App for FC firmware flashing and parameter tuning.

Wireless FC Firmware Upgrade: Supported

DJI Air Unit Connection: Supports 6-pin direct plug-in or solder connection

Blackbox: Supported, built-in 16MB storage chip

Input Voltage: 3-6S LiPo battery

Independent 5V BEC Output: 9 groups (4 +5V pads on front, 1 BZ+ buzzer pad, and 4 +5V pads at the corners for external LEDs). Total output current: 1.5A.

Independent 9V BEC Output: 2 groups (1 9V pad on front, 1 9V output in a connector on the back). Total output current: 3A. Supports PINIO remote on/off control.

MCU & Gyro Power: Independent LDO

3.3V Output: 1 group (1 3.3V pad on front)

4.5V Output: 3 groups (3 4.5V pads on front). Can power receiver and GPS when FC is powered via USB. Max output current: 1A.

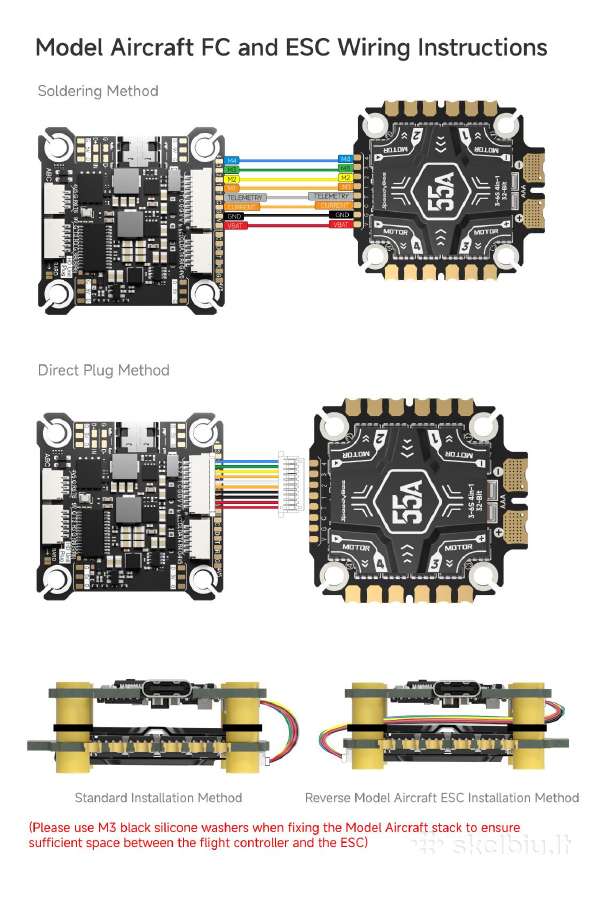

ESC Signal: M1-M4 pads and 10-pin connector on the back

Servo Signal: S5-S6 pads on the front

ESC Telemetry Input: Supported (UART5)

Betaflight Camera Tuning Pad: Supported (CC pad on front)

I2C: Supported (GPS connector + pads)

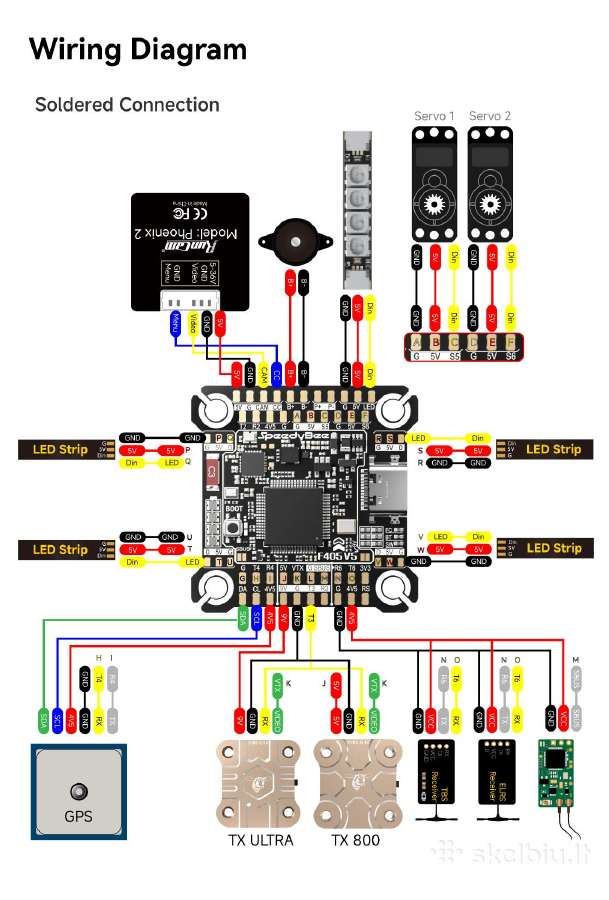

UART:

UART1: Bluetooth

UART2: Front pads for receiver

UART3: DJI VTX pads + rear SH1.0-6-pin

UART4: GPS pads + front SH1.0-6-pin

UART5: TLM

UART6: Receiver pads + rear SH1.0-4-pin

ST LED Pads: Supported, on front G/5V/LED pads; controlled by FC firmware

Meteor LED Strip Pads: Supported. Switch between SB-LED and ST-LED modes via BOOT button or App. In SB-LED mode, controlled by ESP32 Bluetooth chip.

Buzzer Pads: Supported

BOOT Button:

[A]: Hold BOOT while powering on to force DFU mode for flashing

[B]: When powered and in standby, short-press cycles LED display modes; long-press switches SB-LED/ST-LED. In ST-LED mode, LED1–LED4 are controlled by FC firmware.

RSSI Pads: Supported

SmartPort: Not supported

Supported FC Firmware: Betaflight, INAV, Ardupilot

Firmware Target Name: SPEEDYBEEF405V5

Factory Firmware Version: Betaflight 4.5.2

Configurator Version: Betaflight 10.10.0

Mounting Holes: 30.5 30.5mm (4mm), side opening

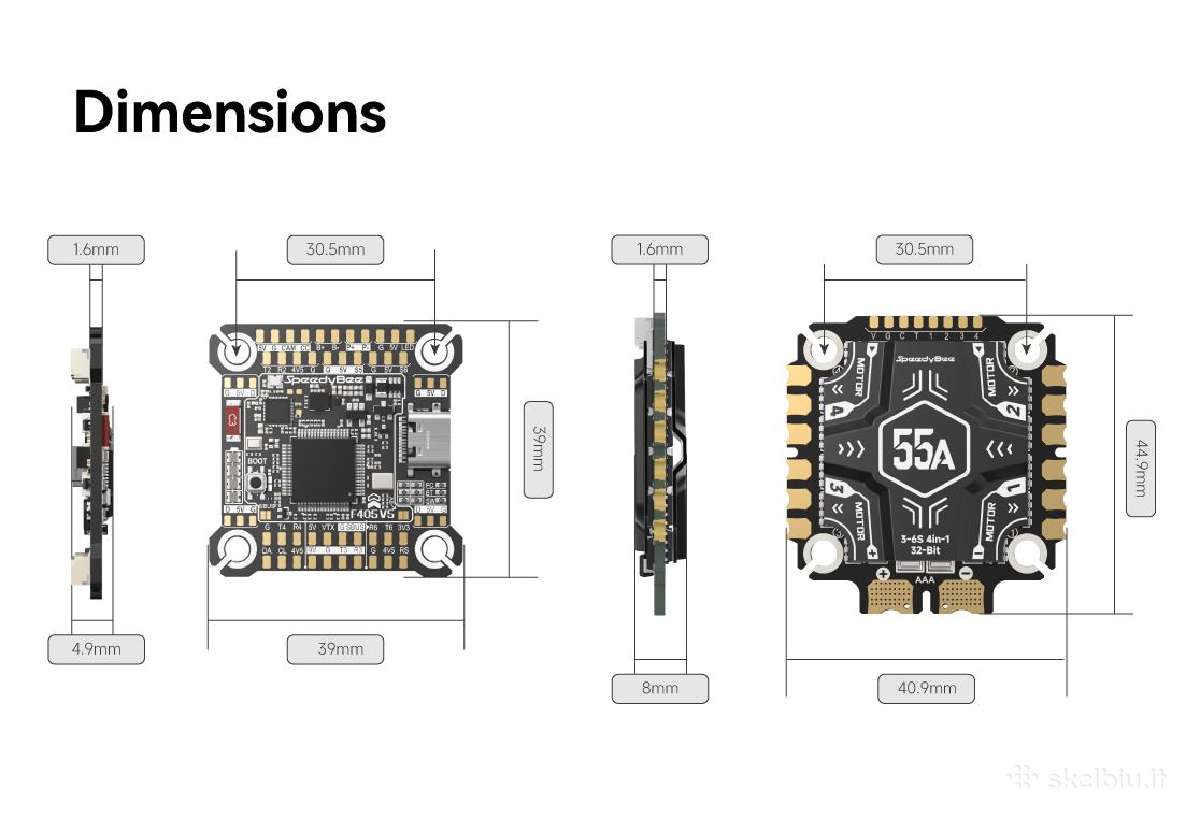

Dimensions: 39mm (L) 39mm (W) 4.9mm (H)

Weight: 8.1g

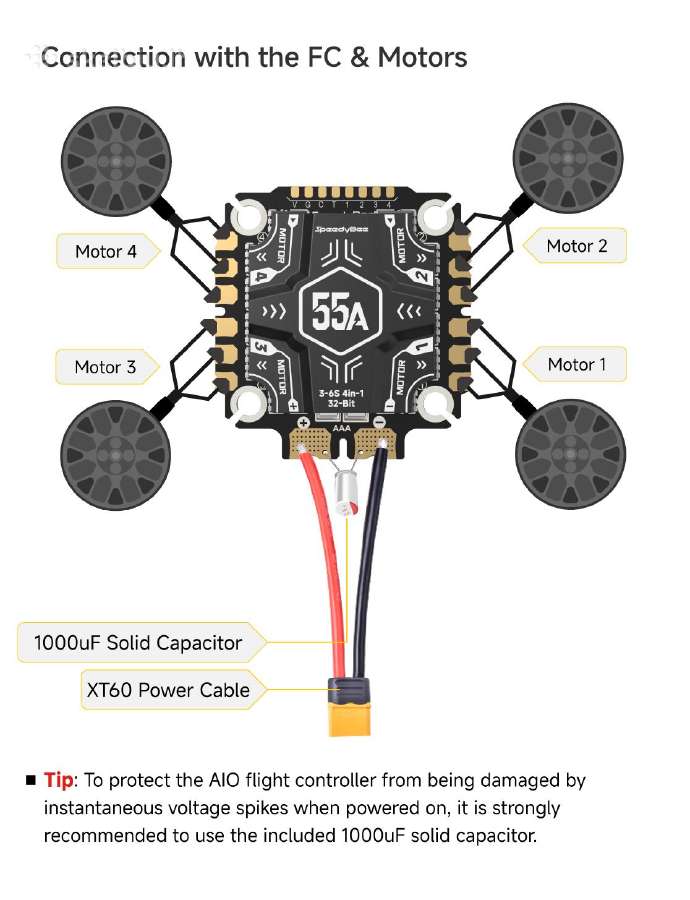

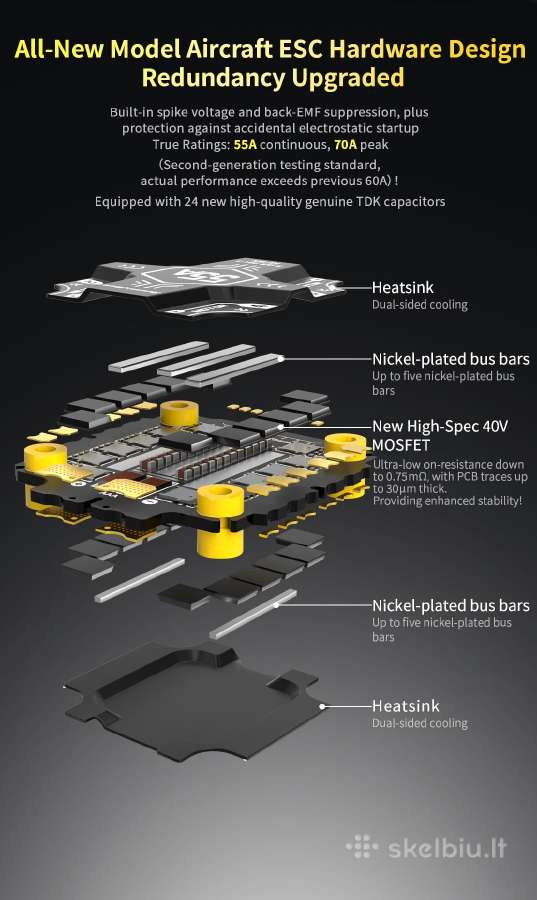

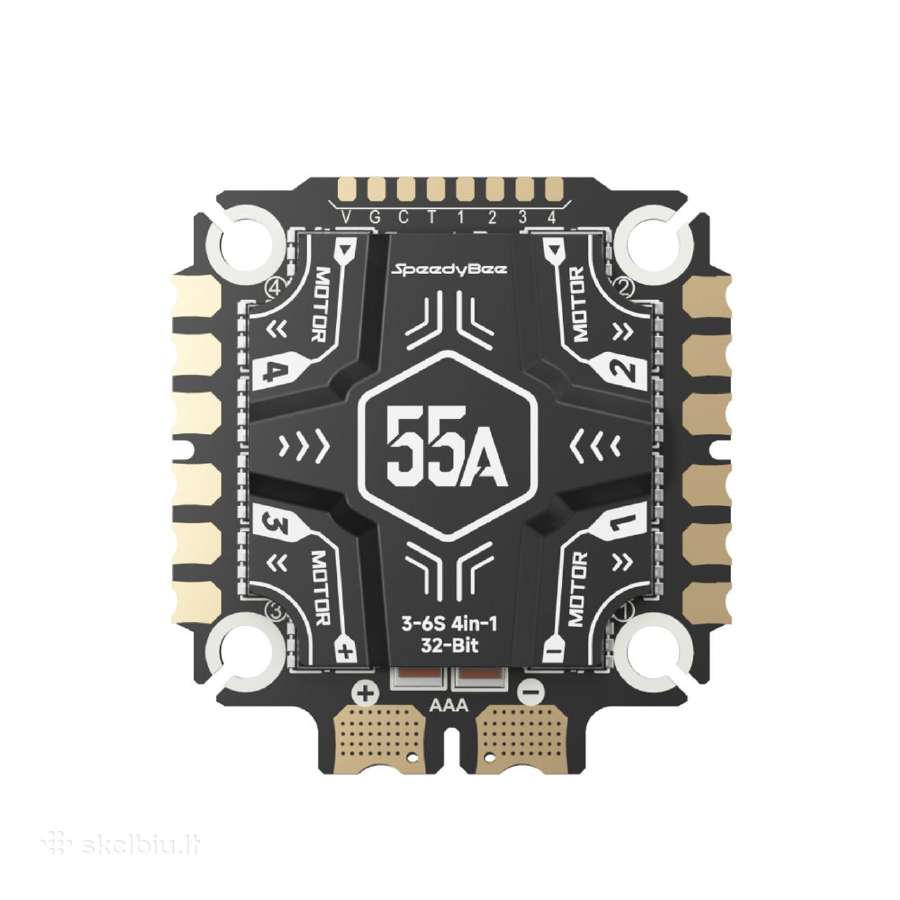

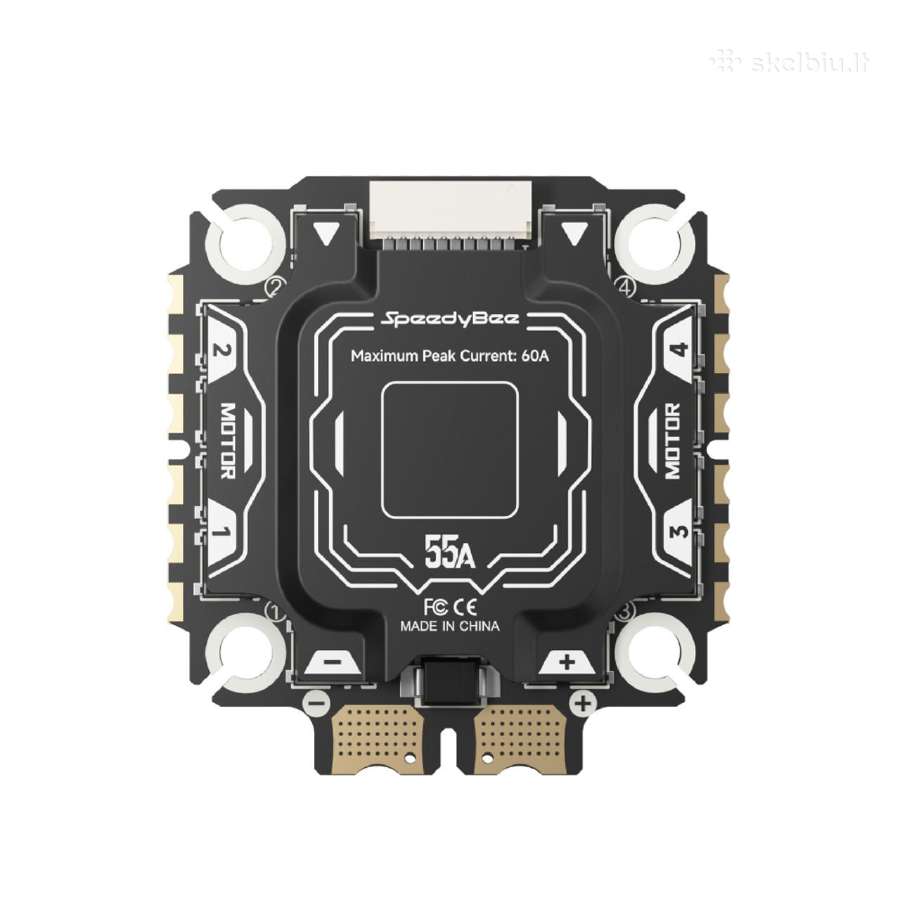

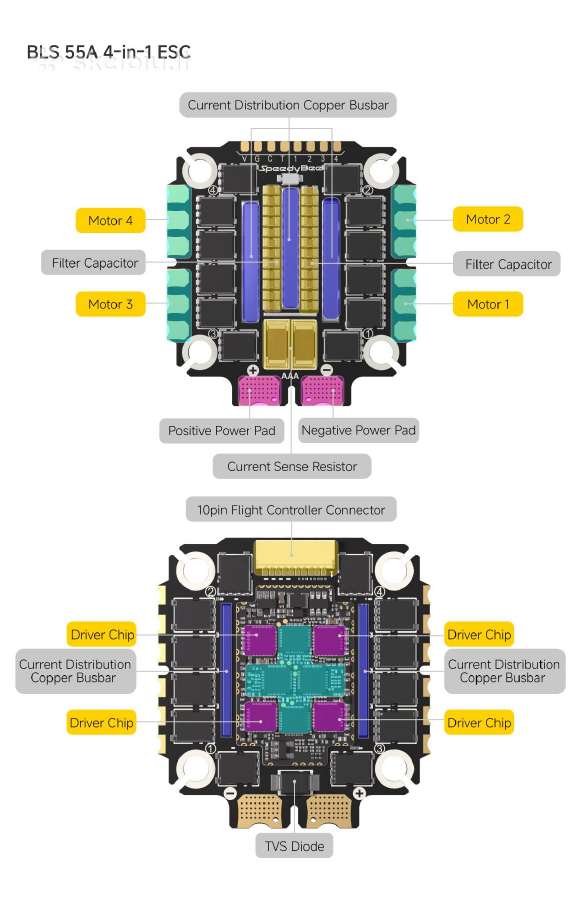

ESC: SpeedyBee OX32 55A 30.530.5 4-in-1

Product Name: SpeedyBee OX32 55A 30.530.5 4-in-1 ESC

Default Firmware: OX32

Continuous Current: 55A (per channel) / 220A (4-in-1)

Maximum Current: 70A (per channel) / 280A (4-in-1)

TVS Protective Diode: Yes (built-in)

External Capacitor: 1000µF Solid Capacitor (included in package)

ESC/Motor Protocol: DSHOT300/600

Input Voltage: 3-6S LiPo

Power Output: VBAT

Current Sensor: Supported

ESC Telemetry: Supported

Mounting Holes: 30.5 30.5mm (4mm), side opening

Dimensions: 40.9mm (L) 44.9mm (W) 8.0mm (H) (incl. heatsink)

Weight: 19.1g

ESC Webpage: https://ox32.oxbot.com/

Current Meter Note: Supported (Scale = 27, Offset = -2644)
