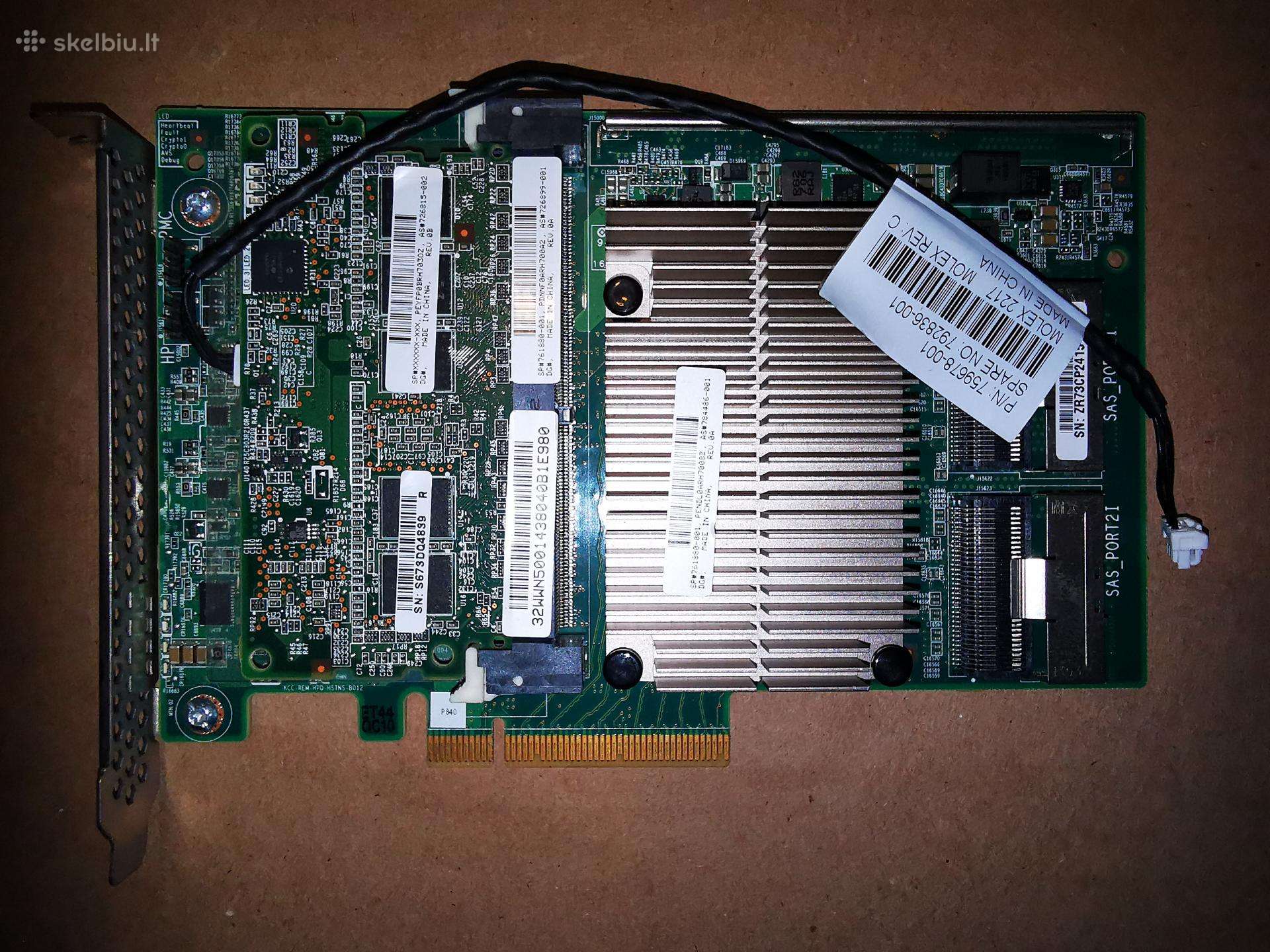

HPE Smart Array P840/4GB FBWC 12Gb 2-ports Int SAS kontroleris. Patikrintas, pilnai veikiantis. Naudingas daiktas norintiems naudoti pigius SAS diskus HPE Gen9 ir Gen10 modeliuose, kuriuose standartiškai motininėje plokštėje yra tik SATA integruotas kontroleris.

HPE SmartCache funkcija jau yra aktyvuota, todėl nereikia papildomai pirkti lizencijos šios funkcijos aktyvavimui, kaip brangesniuose kontroleriuose, pvz., P408i-a SR, turinčiame net 2x mažiau cache atminties.

Papildomai yra:

Kabelis, skirtas sujungti kontrolerį ir backplane plokštę - 30 € (perkant kartu su kontroleriu - 20 €)
Akumuliatorius cache atminčiai palaikyti - 40 € (perkant kartu su kontroleriu - 30 €)

Key Features

Storage interface (SAS/SATA)
o 16 physical links across 2 x8 internal ports
o 12Gb/s SAS, 6Gb/s SATA technology
o Mix-and-match SAS and SATA drives to the same controller
o Support for SAS tape drives, SAS tape autoloaders and SAS tape libraries
4 GiBytes Flash-Backed Write Cache (FBWC)
PCI Express Gen3 x8 link
RAID 0, 1, 10, 5, 50, 6, 60, 10 ADM (Advanced Data Mirroring)
RAID or HBA mode
Legacy and UEFI boot operation
Up to 200 physical drives
Up to 64 logical drives
HPE SmartCache (license included)
HPE Secure Encryption (optional license)
HPE SSD Smart Path
VMware Virtual SAN certified
Rapid Parity Initialization (RPI)
Rapid rebuild
Drive Erase
Performance Optimization-Degraded Reads and Read Coalescing
Power Efficiency
Seamless upgrades to and from other HPE Smart Array controllers
Recovery ROM to protect against controller ROM corruption
Full-height, half-length standard PCI Express plug-in card
o Dimension (excluding bracket): 6.6 in x 4.4 in x 0.6 in (16.8 cm x 11.1 cm x 1.5 cm)

Ports

Internal: 16 SAS/SATA physical links across 2 x8 port

Performance

12Gb/s SAS (1200 MB/s theoretical bandwidth per physical lane)
6Gb/s SATA (600 MB/s theoretical bandwidth per physical lane)
PCI Express Gen3 x8 link width
4 GiBytes 72-bit wide DDR3-1866 Flash Back Write Cache provides up to 14.9GB/s maximum cache bandwidth
Read ahead caching
Write-back caching

NOTE: HPE Smart Array P840/4GB FBWC controller option kit does not include the HPE Smart Storage Battery the backup power source necessary to protect the data on the Flash-backed Write Cache. HPE Smart Storage Battery is an item that has to be purchased separately if this is the first P-series Smart Array controller on your Gen9 server.

Daugiau informacijos galite rasti čia:
https://support.hpe.com/hpesc/public/docDisplay?docId=c04346301&docLocale=en_US
